Description:

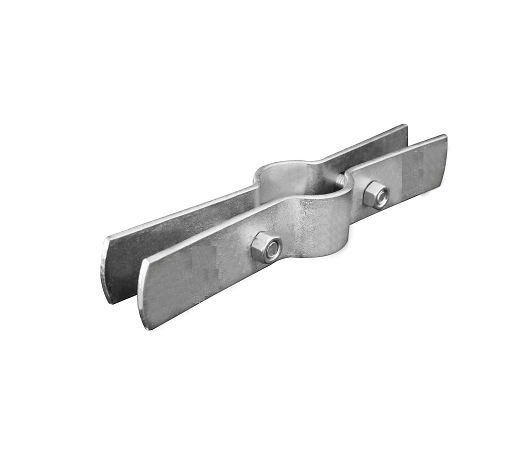

Style HG03W Riser clamps is designed for standard steel pipe O.D.and this must be considered in sizing the riser for other types of piping.
Recommended for support and steadying of copper tube risers, either insulated or non-insulated.This product is not intended for use with hanger rods.
Technical Data:
Size : 12" to 24"
Material: Carbon steel (CS),Alloy (A).
Finish: Hot deep-galvanized or Cooper Plated.
Maximum Temperature: 650°F.
Approval: Complies with Federal Specification A-A-1192A(Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8).
Installation:
Clamp is fitted and bolted below a coupling, hub or welded lugs on steel pipe (2 lugs up to 3" pipe,4 lugs up to 12" pipe). Bolt torques should be per industry standards.
