Description:

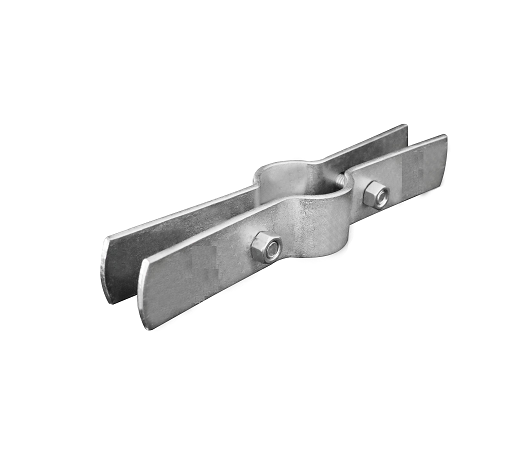

Style HG03 Riser clamps are used for the support of vertical piping.Load is carried by shear lugs which are welded to the pipe. Shear lugs provided upon request.Local pipe wall stress evaluation available upon request.

Technical Data:

Size : 3/4" to 12"
Material: Carbon steel (CS),Alloy (A).

Finish: Plain or Hot-Dip Galvanized with Zinc Plated Fastener,

Maximum Temperature: Galvanized and Epoxy 650°F, Plain 450° F.

Approval: FM/UL.

Installation:

Clamp is fitted and bolted below a coupling, hub or welded lugs on steel pipe (2 lugs up to 3" pipe,4 lugs up to 12" pipe). Bolt torques should be per industry standards.

Clamp is designed for standard steel pipe O.D.and this must be considered in sizing the riser for other types of piping.
