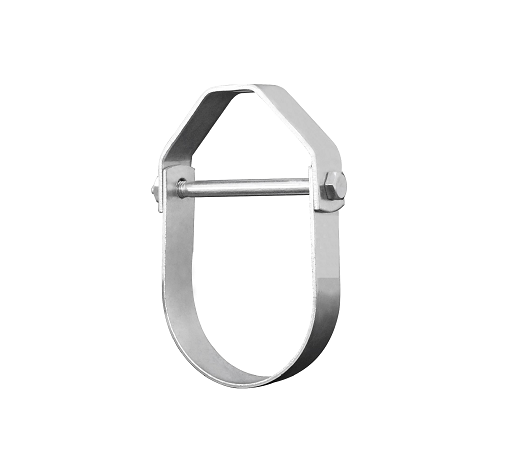

Style HG02H Clevis Hanger

Description:

Style HG02H Clevis Hanger  is recommended for suspension of chilled water pipe or hot water pipe line application, either insulated or non-insulated in HVAC system in a commercial building or industrial building.



Technical Data:

Size : 3/4" to 24"
Material: Stainless steel (CS),Alloy (A)

Finish: Plain, HDG, Cooper plated or other treamtment.

Maximum Temperature: 650° F (SS)

Approval: Complies with Federal Specification A-A-1192A (Type 1), WW-H-171-E (Type 1),ANSI/MSS SP-69 and MSS SP-58 (Type 1)


Installation:

Adjustment may be made either before or after tubing is in place without temporary support of pipe.
Hanger rod and nuts may be locked into position after adjustment by use of the upper nut.
Vertical adjustment without removing pipe may be made from 3⁄8" through 5 1⁄8",varying with the size of clevis. Tighten upper nut after adjustment.
